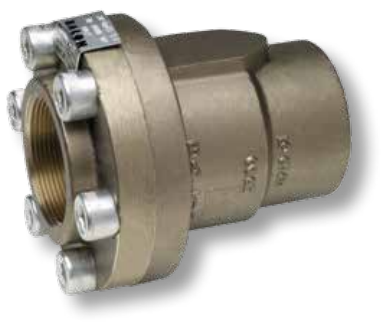

Valve

Series C "9D"

Aluminum Bronze

Threaded End Connection





Swing Check Valve


  • 100% Made in USA
  • 3000 PSI WP
  • 2"
  • ASTM B148 GR 955 "9D"
  • Bolted Body Construction
  • NACE Standard

Related Valves
Valve Features
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Improved Seat Design Protects Seal From Flow
  • Replaceable 316 Stainless Steel Seat Disc Cartridge Standard
  • Exceptional Yield Strength
  • Minimizes Risk of Galling Associated with Stainless Steel

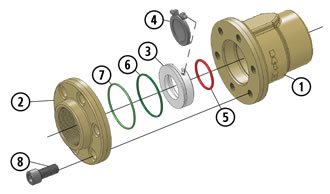

Material Description
ITEM PART
NAME
STAINLESS STEEL
SEAT
1 Body ASTM B148 GR 955
2 Adapter ASTM B148 GR 955
3 Seat Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Fluorocarbon
8 Bolts ASTM A193 B7M

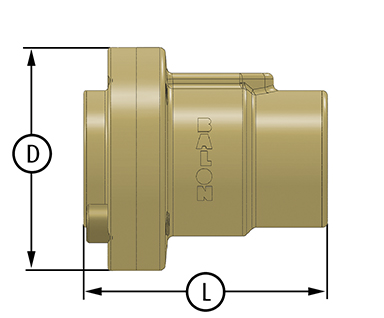

Dimensional Data

SIZE STAINLESS STEEL SEAT PORT D L LBS.
2 2R-C04S-SE 1.5 4.88 5.37 10.9
