Valve

Series C

Ductile Iron

Threaded End Connection

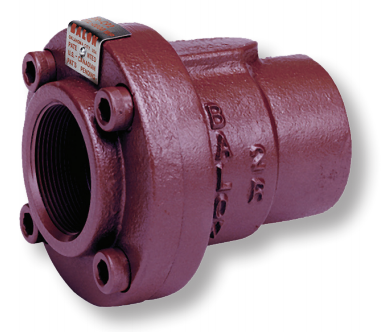

Swing Check Valve

  • 100% Made in USA
  • 2000 PSI WP
  • 2" Through 3"
  • Bolted Body Construction
  • NACE Standard

Related Valves

Carbon Steel

Aluminum Bronze
Valve Features
  • Bolted Body Protects Against End Adapter Rotation
  • High Grade Annealed Ductile Iron for Better Corrosion Resistance and Greater Yield Strength
  • Improved Seat Design Protects Seal From Flow
  • Replaceable 316 Stainless Steel Seat Disc Cartridge Standard

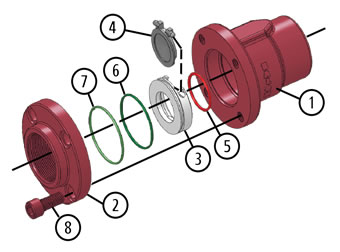

Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
2 Adapter ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
3 Seat Replaceable AISI 1018 Carbon Steel Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Buna-N Body Seal: Fluorocarbon
8 Bolts ASTM A193 B7M ASTM A193 B7M

Dimensional Data

SIZE CATALOG NUMBER PORT D L LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2R-C92-SE 2R-C92S-SE 1.5 4.87 5.50 10.0
3 3R-C92-SE 3R-C92S-SE 2.0 6.75 7.25 24.3
