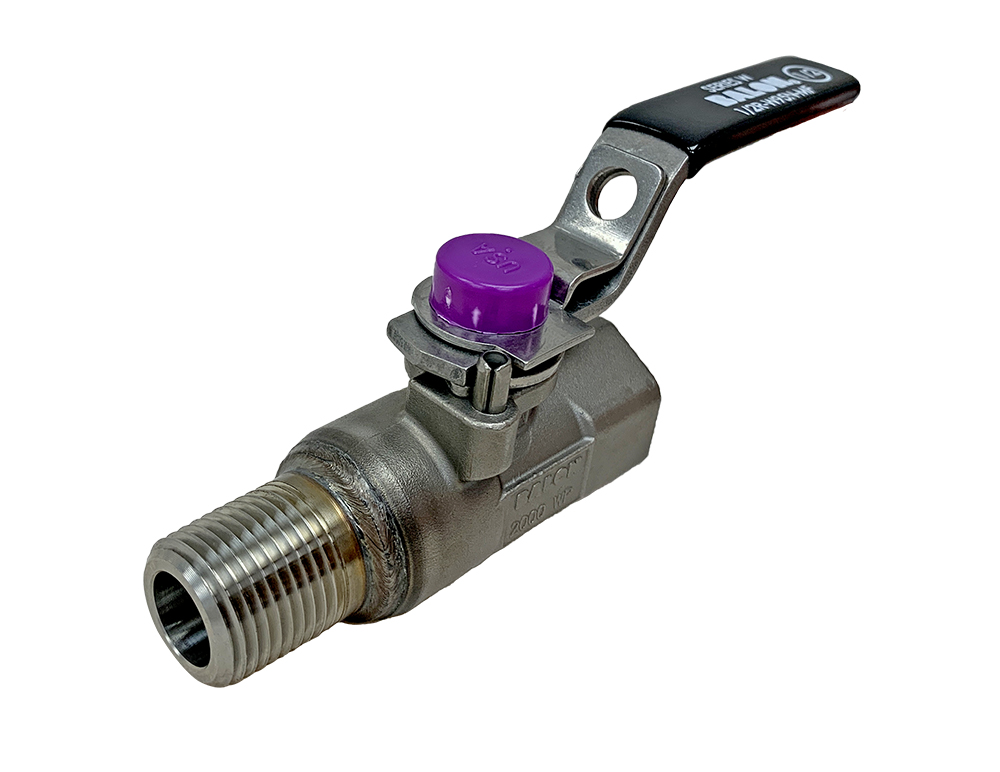

Valve

Series W

Stainless Steel

Male x Female

Threaded End Connection





Floating Ball Valve

  • 100% Made in USA
  • 2000 to 3000 PSI WP
  • 1/2" and 1" Reduced Port
  • Welded Body Construction
  • NACE Standard

Valve Features
  • Certified Low Emission Per API 641
  • Fire Safe Design
  • Welded Top Works Keeps Travel Stops Intact When Handle is Removed
  • All Metal Components Made from Stainless Steel
  • Locking Device Standard
  • Multi-Seal Seats (See page B-5)

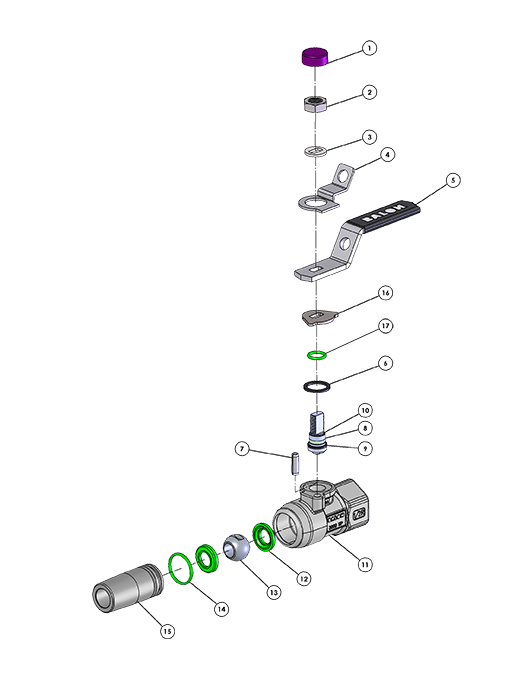

Material Description
ITEM PART NAME MATERIAL
(STANDARD)
1 Weather Guard Polypropylene
2 Stem Nut Stainless Steel
3 Spacer Stainless Steel
4 Lock Plate Stainless Steel
5 Handle* Stainless Steel
6 Stem Washer TFE
7 Stop Pin Stainless Steel
8 Stem O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body ASTM A351 CF8M
12 Ball Seat Nylon/Polyketone
13 Ball 316 Stainless Steel
14 Body O-Ring Fluorocarbon
15 Adapter 316 Stainless Steel
16 Stop Plate Stainless Steel
17 O-Ring Fluorocarbon
*Handle and locking device standard on all Series W Ball Valves

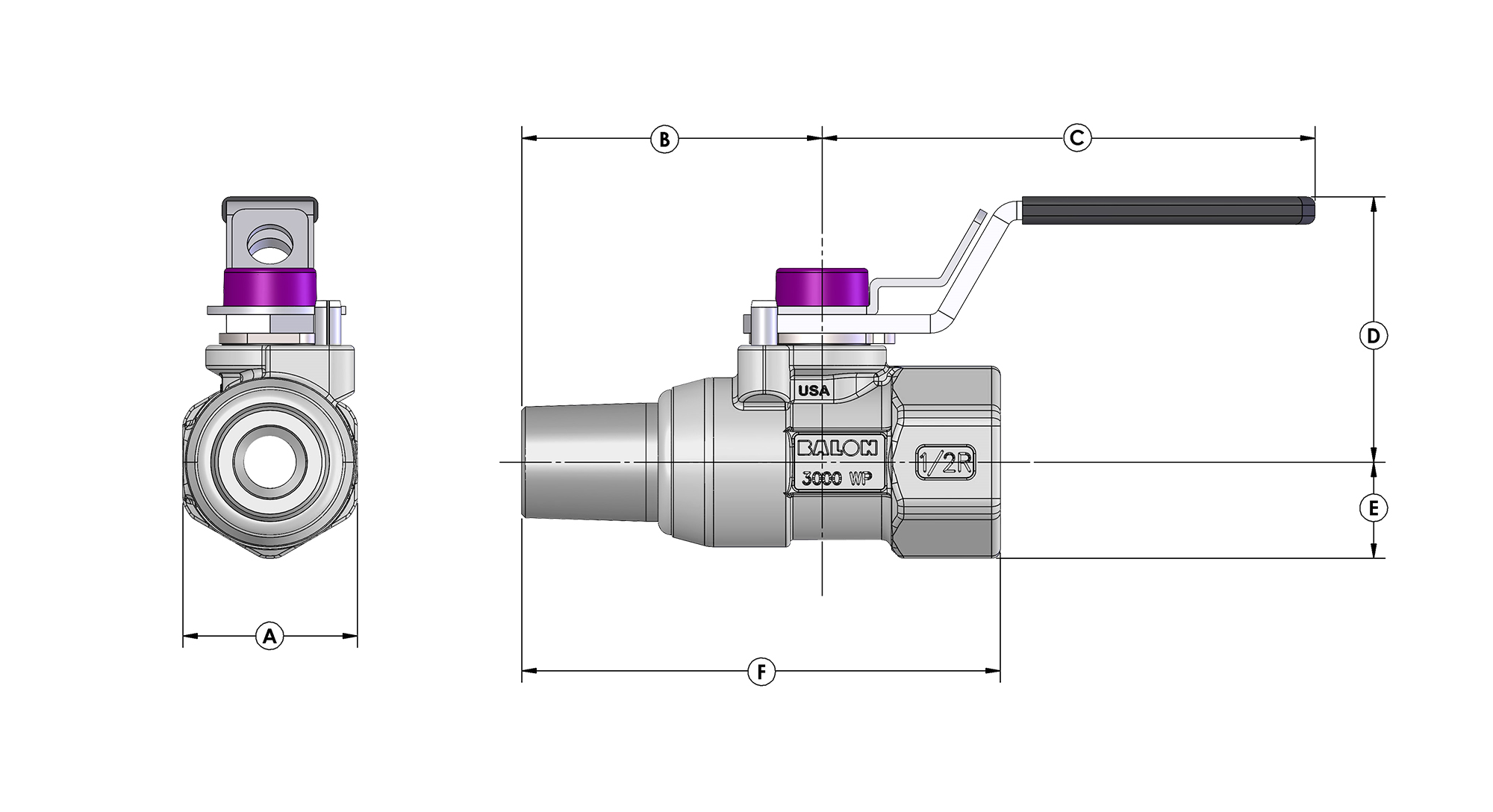

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B C D E F LBS. Cv
.50 x .375 x .50 1/2R-W95N-MF .375 2000 1.07 2.15 3.50 1.90 .58 3.43 0.75 6
.50 x .375 x .50 1/2R-W05N-MF .375 3000 1.25 2.15 3.50 1.90 .69 3.43 0.89 6
1 x .75 x 1 1R-W95N-MF .75 2000 2.09 1.70 4.87 2.41 1.04 3.64 2.10 30
1 x .75 x 1 1R-W05N-MF .75 3000 2.19 1.70 4.87 2.41 1.09 3.64 2.26 30
