Valve

Series F "9D"

Nickel Aluminum Bronze

Flanged End Connection





Floating Ball Valve

  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • 2" Through 4"
  • ASTM B148 GR 955 "9D"
  • Bolted Body Construction
  • NACE Standard

Related Valves

Carbon Steel

Ductile Iron
Valve Features
  • Certified Low Emission Per API 641
  • Fire Safe Design
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Minimizes Risk of Galling Associated with Stainless Steel
  • Multi-Seal Seats (See page B-5)
  • Rugged Locking Device Standard

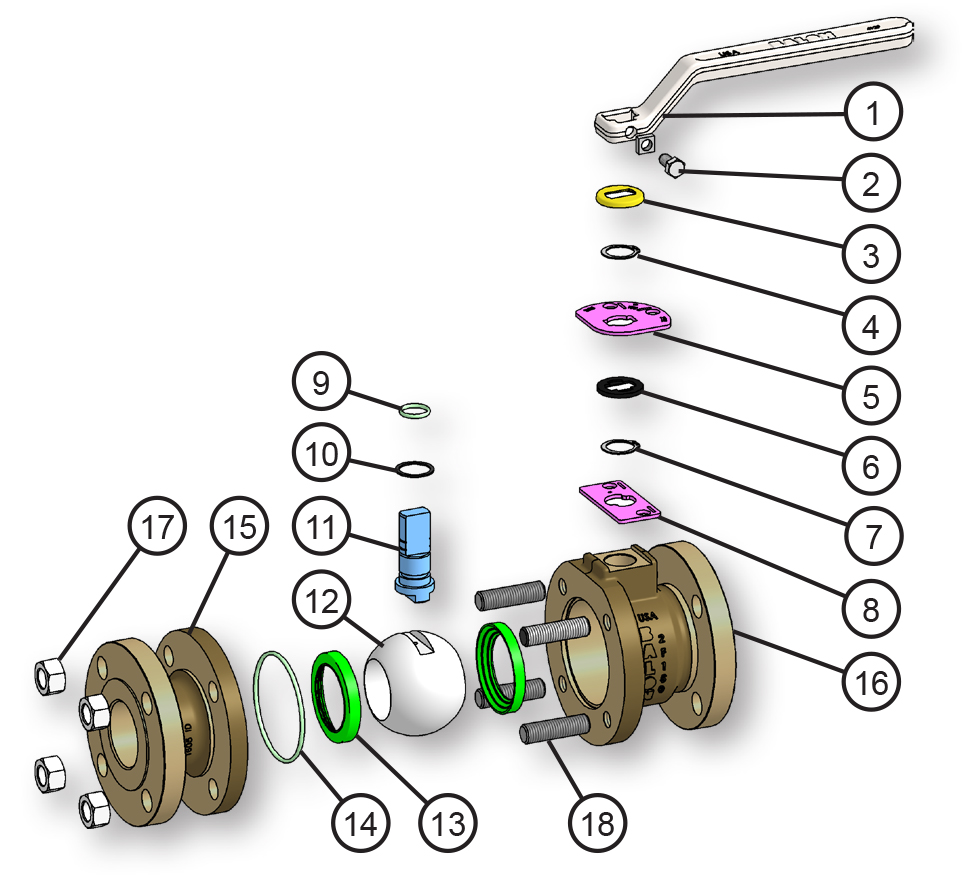

Material Description
ITEM PART
NAME		 MATERIAL (NACE)
1 Handle* Carbon Steel/Ductile Iron
2 Handle Bolt Standard Hex Bolt
3 Weather Guard Polypropylene
4 Lock Plate Retainer Stainless Steel
5 Lock Plate Stainless Steel
6 Dust Cover Polyethylene
7 Stop Plate Retainer Stainless Steel
8 Stop Plate Stainless Steel
9 Stem O-Ring Fluorocarbon
10 Stem Seal TFE
11 Stem 316 Stainless Steel
12 Ball 316 Stainless Steel
13 Ball Seat Nylon 11 (TFE Optional**)
14 Body O-Ring Fluorocarbon
15 End Adapter ASTM B148-9D (955)
16 Body ASTM B148-9D (955)
17 Nuts ASTM A194 7M
18 Body Bolts ASTM A193 L7M
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page TD-4 for more information.

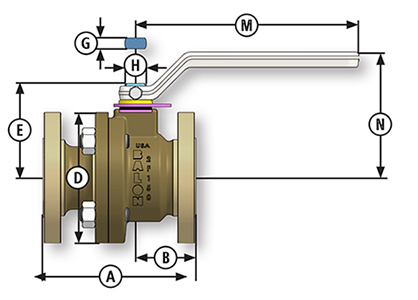

Dimensional Data

SIZE CATALOG NUMBER PORT A B D E F G H M N LBS. HANDLE Cv
NACE TRIM
316 SS
BALL & STEM
2x2x2 2F-F14N-RF 2 7.0 2.75 6.00 4.37 0.87 .497 0.998 10.25 6.20 28.0 P-4129-CS -
3x3x3 3F-F14N-RF 3 8.0 3.56 7.50 5.75 1.06 .747 1.373 20.0 7.75 54.0 P-4127-DI -
4x4x4 4F-F14N-RF 4 9.0 4.06 9.00 6.37 1.06 .747 1.373 20.0 8.37 80.0 P-4127-DI -
    * Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
    Also available with Balon Gear Operator.
