Valve

Series F

Ductile Iron

Flanged End Connection



ANSI Class 150

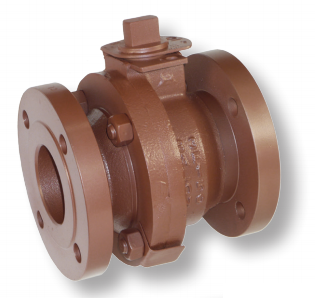

Floating Ball Valve


  • Lever Operated Ball Valve
  • ANSI Class 150* - Raised Face (250 PSI WP)
  • 2" Through 6"
* Dimensions meet ANSI standard B16.34; rated working pressure meets ANSI standard B16.42

Valve Features
  • Meets API 641 Emissions Standard
  • High Grade Annealed Ductile Iron for Better Corrosion Resistance and Greater Yield Strength
  • Multi-Seal Seats
  • Fire Safe Design
  • Rugged Locking Device Standard
  • NACE Option With 316 Stainless Steel Ball and Stem Available
  • Maintenance Free Sealing Improvement Over Lubricated Ball Valves and Cast Iron Plug Valve
  • Eliminates High Maintenance of Lubricated Valves
Material Description

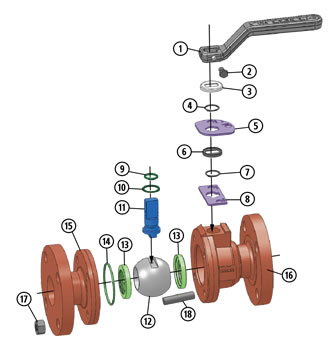

ITEM PART
NAME
MATERIAL
(STANDARD)
MATERIAL
(NACE)
1 Handle* Carbon Steel/Ductile Iron Carbon Steel/Ductile Iron
2 Handle Bolt Standard Hex Bolt Standard Hex Bolt
3 Weather Guard Polyethylene Polyethylene
4 Lock Plate Retainer Carbon Spring Steel Carbon Spring Steel
5 Lock Plate Carbon Steel Carbon Steel
6 Dust Cover Polyethylene Polyethylene
7 Stop Plate Retainer Carbon Spring Steel Carbon Spring Steel
8 Stop Plate Carbon Steel Carbon Steel
9 Stem O-Ring Buna-N Fluorocarbon
10 Stem Seal TFE TFE
11 Stem Carbon Steel 316 Stainless Steel
12 Ball Carbon Steel Nickel Chrome Plated 316 Stainless Steel
13 Ball Seat Nylon (TFE Optional) Nylon (TFE Optional)
14 Body O-Ring Buna-N Fluorocarbon
15 End Adapter ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
16 Body ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B D E F G H M N LBS. HANDLE Cv
STANDARD TRIM
CARBON
STEEL
BALL & STEM
NACE TRIM
316 SS
BALL & STEM
2x1.5x2 2R-F12 2R-F12N 1.5 250 7 3.25 5 3.62 .75 .434 .873 7.25 5.25 23 P-4128-CS 125
2x2x2 2F-F12 2F-F12N 2 250 7 2.75 6 4.37 .87 .497 .998 10.25 6.20 28 P-4129-CS -
3x2x3 3R-F12 3R-F12N 2 250 8 3 6 4.37 .75 .497 .998 10.25 6.20 30 P-4129-CS 200
3x3x3 3F-F12 3F-F12N 3 250 8 3.56 7.50 5.75 1.06 .747 1.373 20 7.75 54 P-4127-DI -
4x3x4 4R-F12 4R-F12N 3 250 9 3.37 7.87 5.75 .87 .747 1.373 20 7.75 65 P-4127-DI 525
4x4x4 4F-F12 4F-F12N 4 250 9 3.81 9 6.37 1.06 .747 1.373 20 8.37 80 P-4127-DI -
6x4x6 6R-F12** 6R-F12N** 4 250 10.5 3.81 9 6.37 .87 .747 1.373 20 8.37 80 P-4127-DI 800
  ** Uni-body design.
  * Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
