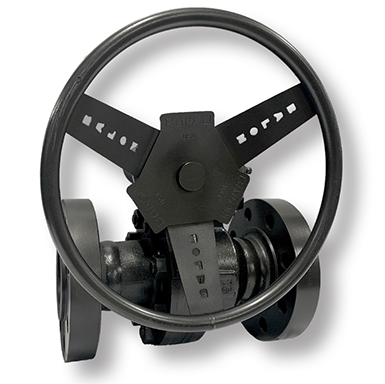

Valve

Series F

Carbon Steel

Flanged End Connection



ANSI Class 900, 1500

Floating Ball Valve

  • 100% Made in USA
  • ANSI Class 900 (2220 PSI WP)
  • ANSI Class 1500 (3705 PSI WP)
  • 3"
  • Bolted Body Construction

Valve Features
  • Certified Low Emission per API 641
  • Certified Fire Safe per API 6FA
  • Exclusive Balon Gearbox (See page G-2)
  • NACE Option With 316 Stainless Steel Ball and Stem Available
  • Rugged Locking Device Standard
  • Multi-Seal Seats (See page B-5)

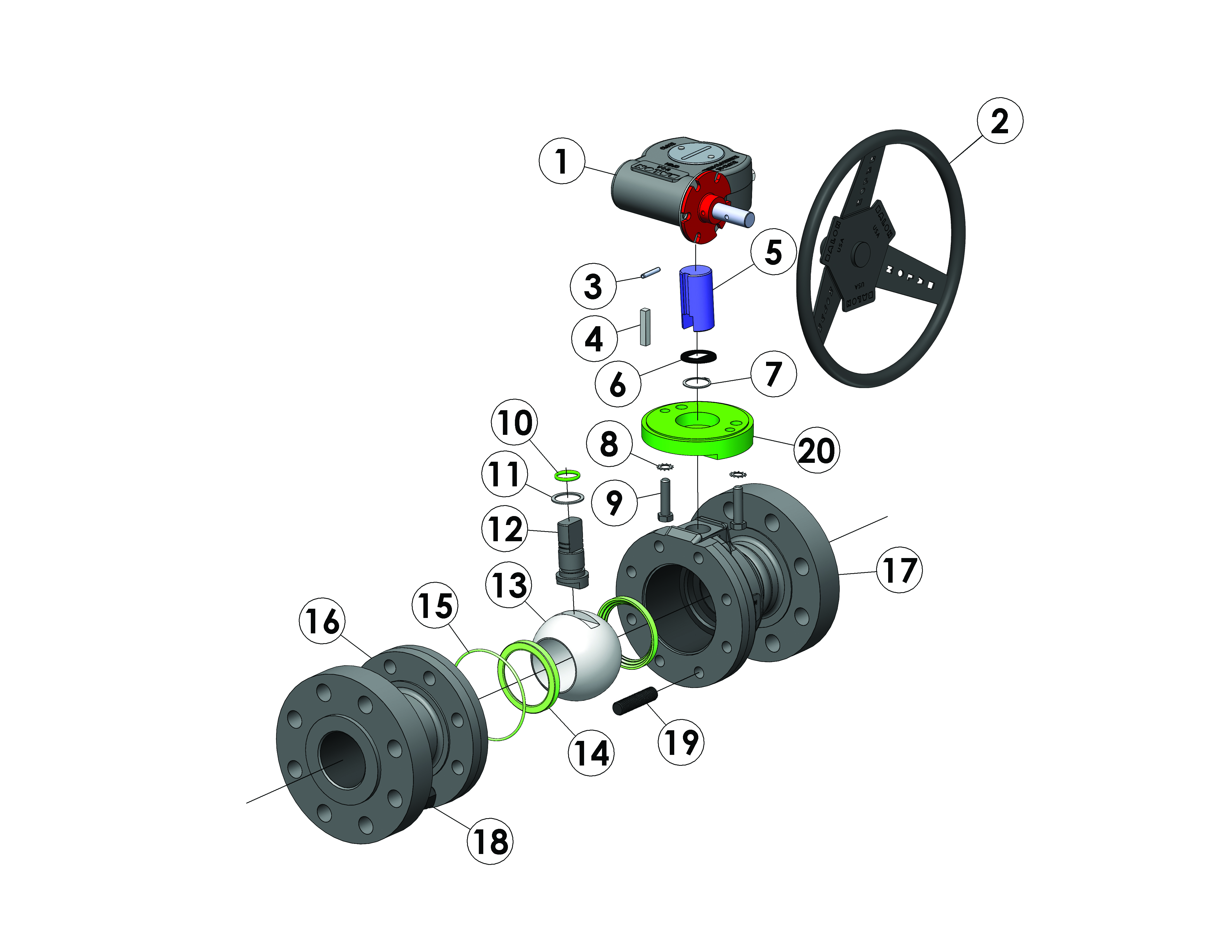

Material Description
ITEM PART
NAME		 MATERIAL
(STANDARD)		 MATERIAL
(NACE)
1 Gear Operator Ductile Iron Ductile Iron
2 Hand Wheel Carbon Steel Carbon Steel
3 Drive Pin Carbon Steel Carbon Steel
4 Stem Key Steel Key Stock Steel Key Stock
5 Stem Drive Adapter Carbon Steel Carbon Steel
6 Weather Guard Polypropylene Polypropylene
7 Snap-Ring Carbon Spring Steel Carbon Spring Steel
8 Lock Washers Carbon Steel Carbon Steel
9 Mounting Screws Alloy Steel Alloy Steel
10 Stem O-Ring Buna-N Fluorocarbon
11 Stem Seal TFE TFE
12 Stem Carbon Steel 316 Stainless Steel
13 Ball Carbon Steel Nickel Chrome Plated 316 Stainless Steel
14 Ball Seats Acetal Acetal
15 Body O-Ring Buna-N Fluorocarbon
16 End Adapter ASTM A105, Normalized ASTM A105, Normalized
17 Body ASTM A105, Normalized ASTM A105, Normalized
18 Nuts ASTM A194 2H ASTM A194 2HM
19 Body Bolts ASTM A193 B7 ASTM A193 B7M

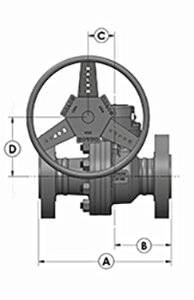

Dimensional Data
The Balon Valve: Totally Advanced
The Balon Valve: Totally Advanced
SIZE CATALOG NUMBER PORT A B C D E F G LBS. Cv
STANDARD TRIM
CARBON STEEL
BALL & STEM 		NACE TRIM
316 SS
BALL & STEM
RF RJ RF RJ
3x3x3 3F-F93-XX* 3F-F93N-XX* 3 15 15.12 6.38 6.44 3 6.75 14 9 8.12 183 -
3x2.5x3 3R-F03-XX* 3R-F03N-XX* 2.5 18.5 18.63 7.90 7.96 3 10 14 9 11.5 219 280
   *End connection must be specified as -RF or -RJ at the time of order.
