Valve

Forged Body & Adapter

Stainless Steel Ball & Stem

Threaded End Connection





Test & Tap Valve

  • Sampling
  • Chemical Injection
  • Relief Valve Testing
  • Instrumentation Attachment
  • Drains, Taps, Farm Taps, etc.
  • ESD/Safety Pressure Switch Verification
  • Pressure Relief on Blind End Applications

Valve Features
    • Fire Safe Design
    • Ready to Install Off the Shelf
    • Sizes Available 3/4", 1", 1 1/2", 2"
    • 316 Stainless Steel Ball and Stem
    • BALON Valve Has Bolted Construction
    • Certified Low Emission Valve Per API 641
    • NACE Standard and Rated -50 °F to 212 °F Service

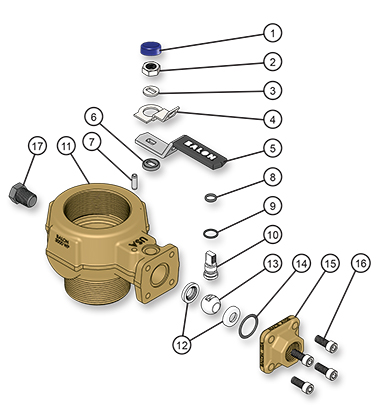

Material Description
ITEM PART
NAME		 MATERIAL
(NACE)
1 Weather Guard Polyethylene
2 Stem Nut Carbon Steel
3 Spacer Carbon Steel
4 Lock Plate Carbon Steel
5 Handle* Carbon Steel
6 Stem Washer Acetal
7 Stop Pin Carbon Steel
8 Stem O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body ASTM A350 LF2 CL1
12 Seat Nylon 11 (TFE Optional)
13 Ball 316 Stainless Steel
14 Body O-Ring Fluorocarbon
15 End Adapter ASTM A350 LF2 CL1
16 Body Bolts ASTM A320 L7M
17 NPT Pipe Plug Carbon Steel
* Handle and lock device are standard.

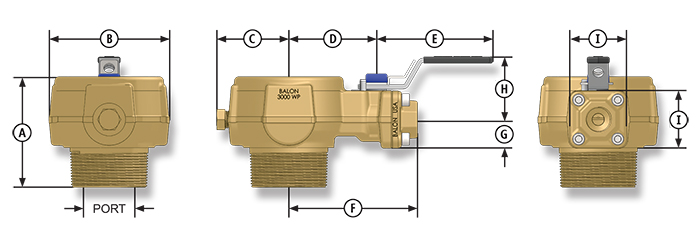

Dimensional Data
SIZE CATALOG NUMBER PORT WP A B C D E F G H I LBS.
0.75 3/4-TNT-MF 0.75 3000 3.00 2.50 1.54 2.21 3.50 3.50 0.87 1.88 1.75 3.50
1.0 1-TNT-MF 0.91 3000 3.00 2.50 1.54 2.21 3.50 3.50 0.87 1.88 1.75 3.50
1.5 1.5-TNT-MF 1.38 3000 3.60 3.26 1.97 2.60 3.50 3.90 0.87 1.88 1.75 4.75
2.0 2-TNT-MF 1.88 3000 3.40 3.68 2.20 2.68 3.50 4.00 0.87 1.88 1.75 5.00
