Valve

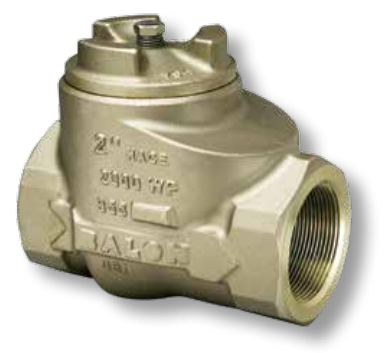

Series D

Aluminum Bronze

Threaded End Connection





Swing Check Valve

  • 100% Made in USA
  • Top Entry Swing Check Valve
  • To 2000 PSI WP
  • 1" Through 4"
  • ASTM B148 GR 955 "9D"
  • Threaded Body Construction
  • NACE Standard

Related Valves

Carbon Steel

Ductile Iron
Valve Features
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Replaceable 316 Stainless Steel Disc Standard
  • Exceptional Yield Strength
  • Improved by Design for Easier Bonnet Removal
  • Minimizes Risk of Galling Associated with Stainless Steel
Material Description
ITEM PART NAME DESCRIPTION
1 Body ASTM B148 955
2 Bonnet ASTM B148 955
2 Bonnet Seal Fluorocarbon
4A Disc Replaceable 316 Stainless Steel
4B Disc Hangar 316 Stainless Steel
5 Disc Seal Fluorocarbon
6* Pipe Plug 316 Stainless Steel
* Not Available in 1"

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B C LBS.
1 1F-D94-SE 1 2000 4.25 2.87 1.12 4
2 2F-D44-SE 2 1000 6.00 3.75 1.87 9.8
2 2F-D94-SE 2 2000 6.00 3.75 1.87 11
3 3F-D44-SE 3 1000 8.00 4.45 2.43 21
4 4F-D44-SE 4 1000 10.00 5.54 3.00 36
