Valve
Series D Nickel
Nickel Aluminum Bronze
Grooved End Connection
Swing Check Valve
Click to Enlarge
100% Made in USA

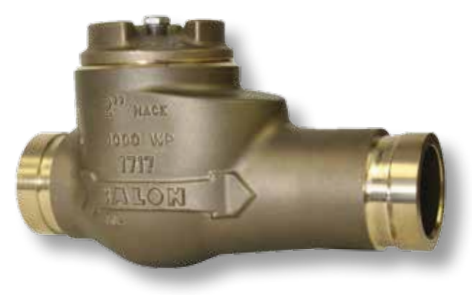

Top Entry Swing Check Valve
1000 PSI WP
2" Through 6"
ASTM B148 GR 955 "9D"
Threaded Body Construction
NACE Standard
View\Save Cut-Sheet
Related Valves
Ductile Iron
Valve Features
Enhanced Protection Against CO² and Saltwater Corrosion
Replaceable 316 Stainless Steel Seat Disc Cartridge Standard
Exceptional Yield Strength
Improved by Design for Easier Bonnet Removal
Fully Machined Grooves

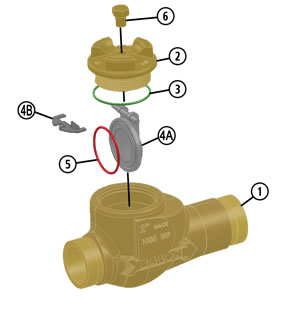

Material Description
ITEM
PART NAME
DESCRIPTION
1
Body
ASTM B148 GR 955
2
Bonnet
ASTM B148 GR 955
2
Bonnet Seal
Fluorocarbon
4A
Disc
Replaceable 316 Stainless Steel
4B
Disc Hangar
316 Stainless Steel
5
Disc Seal
Fluorocarbon
6
Pipe Plug
316 Stainless Steel

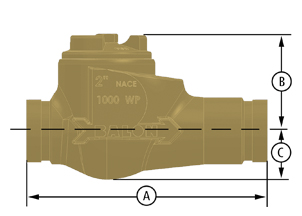

Dimensional Data
SIZE
CATALOG NUMBER
PORT
WP
A
B
C
LBS.
2
2F-D44-GE
2
1000
9.00
3.58
1.82
9.75
3
3F-D44-GE
3
1000
10.75
4.50
2.45
21.00
4
4F-D44-GE
4
1000
12.00
5.54
2.95
36.00
6
6R-D44-GE
4
1000
12.00
5.54
2.95
38.6
