Valve
Series C "9D"
Nickel Aluminum Bronze
Threaded End Connection
Swing Check Valve

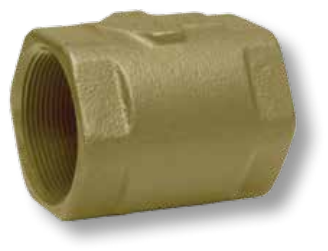

Click to Enlarge
100% Made in USA
Swing Check Valve
750 PSI WP
2" Through 3"
ASTM B148 GR 955 "9D"
One Piece Body
NACE Standard
View\Save Cut-Sheet
Related Valves
Ductile Iron
Valve Features
Enhanced Protection Against CO² and Saltwater Corrosion
Improved Seat Design Protects Seal From Flow
Replaceable 316 Stainless Steel Seat Disc Cartridge Standard
Exceptional Yield Strength
Minimizes Risk of Galling Associated with Stainless Steel

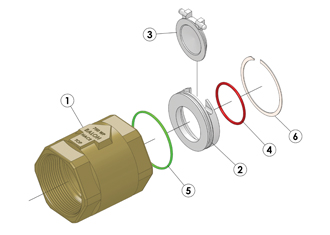

Material Description
ITEM
PART
NAME
STAINLESS STEEL
SEAT
1
Body
ASTM B148 GR 955
2
Seat
Replaceable 316 Stainless Steel
3
Disc
Replaceable 316 Stainless Steel
4
O-Ring
Seat Seal: Fluorocarbon
5
O-Ring
Body Seal: Fluorocarbon
8
Retaining Ring
316 Stainless Steel
Dimensional Data
SIZE
STAINLESS STEEL SEAT
PORT
D
L
LBS.
2
2R-C34S-SE
1.25
3.00
3.62
3.3
3
3R-C34S-SE
2.00
4.25
4.50
7.3
