Valve

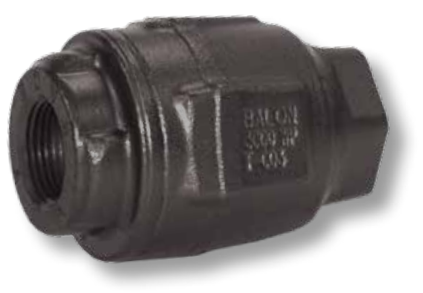

Series C

Carbon Steel

Threaded End Connection





Swing Check Valve

  • 100% Made in USA
  • To 3000 PSI WP
  • 1"
  • Threaded Body Construction

Valve Features
  • Replaceable 316 Stainless Steel Seat Disc Cartridge Standard
  • Improved Seat Design Protects Seal From Flow
  • NACE Standard

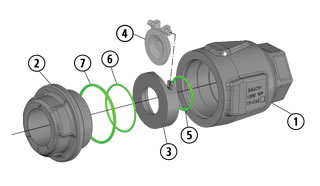

Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body ASTM A105, Normalized ASTM A105, Normalized
2 Adapter ASTM A105, Normalized ASTM A105, Normalized
3 Seat Replaceable Carbon Steel Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Buna-N Body Seal: Fluorocarbon

Dimensional Data

SIZE CATALOG NUMBER PORT WP D L LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
1 1F-C63-SE 1F-C63S-SE 1 1500 2.75 4.25 4.2
1 1F-C03-SE 1F-C03S-SE 1 3000 2.75 4.25 4.2
