Valve

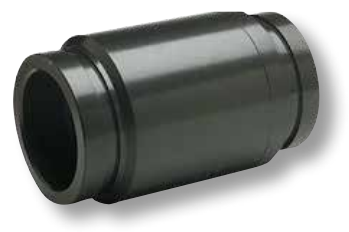

Series C

Carbon Steel

Grooved End Connection





Swing Check Valve

  • 1,000 PSI WP
  • 2" Through 3"
  • Threaded Body Connection

Valve Features
  • Replaceable Seat Disc Cartridge
  • Seal Located in Seat, Thus Protected From Flow
  • NACE Standard
  • Stainless Steel Disc Standard

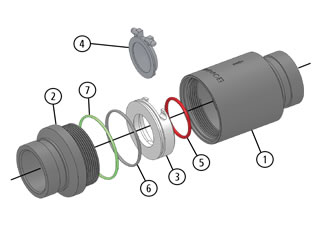

Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body AISI 1018 Carbon Steel AISI 1018 Carbon Steel
2 Adapter AISI 1018 Carbon Steel AISI 1018 Carbon Steel
3 Seat Replaceable Carbon Steel Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Buna-N Body Seal: Fluorocarbon

Dimensional Data

SIZE CATALOG NUMBER PORT D L LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2R-C43-GE 2R-C43S-GE 1.5 3.12 5.87 5.3
3 3R-C43-GE 3R-C43S-GE 2 4 6.50 9.8
