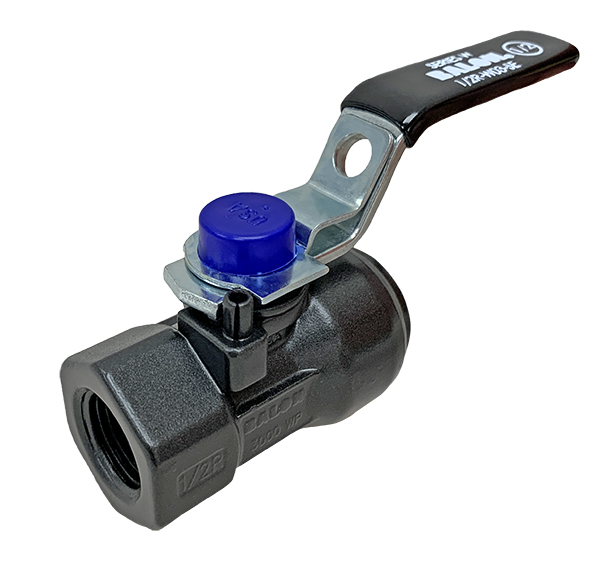

Valve
Series W
Carbon Steel
Female x Female
Threaded End Conection
Floating Ball Valve
Click to Enlarge
100% Made in USA
2000 to 3000 PSI WP
1/4" Through 1"
Welded Body Construction
View\Save Cut-Sheet
Valve Features
Certified Low Emission Per API 641
Fire Safe Design
Welded Top Works Keeps Travel Stops Intact When Handle is Removed
316 Stainless Steel Ball and Stem Standard
Locking Device Standard
Multi-Seal Seats (See
page B-5
)

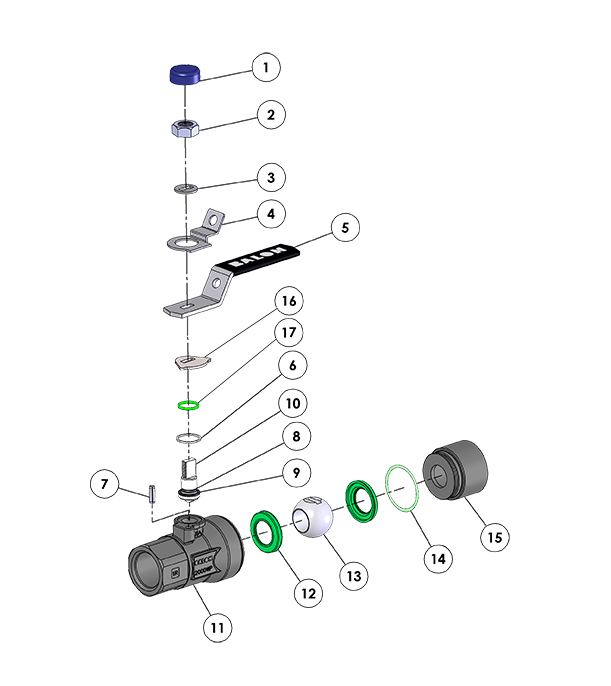

Material Description
ITEM
PART NAME
MATERIAL
(STANDARD)
1
Weather Guard
Polypropylene
2
Stem Nut
Carbon Steel
3
Spacer
Carbon Steel
4
Lock Plate
Carbon Steel
5
Handle*
Carbon Steel
6
Stem Washer
TFE
7
Stop Pin
Carbon Steel
8
Stem O-Ring
Fluorocarbon
9
Stem Seal
TFE
10
Stem
316 Stainless Steel
11
Body
ASTM A216 WCB
12
Ball Seat
Nylon/Polyketone
13
Ball
316 Stainless Steel
14
Body O-Ring
Fluorocarbon
15
Adapter
ASTM A108 1018
16
Stop Plate
Stainless Steel
17
O-Ring
Fluorocarbon
*Handle and locking device standard on all Series W Ball Valves.

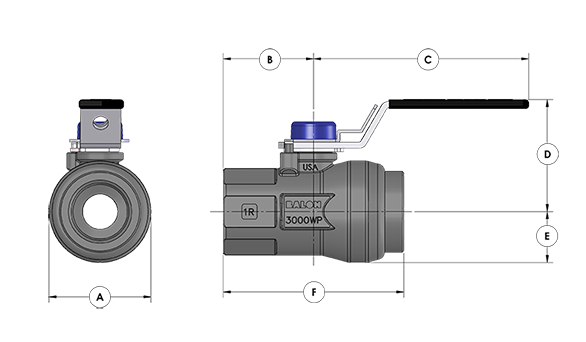

Dimensional Data
SIZE
CATALOG NUMBER
PORT
WP
A
B
C
D
E
F
LBS.
Cv
.25 x .375 x .25
1/4F-W93-SE
.375
2000
1.17
1.13
3.50
1.90
.58
2.25
0.60
-
.25 x .375 x .25
1/4F-W03-SE
.375
3000
1.21
1.13
3.50
1.90
.61
2.25
0.65
-
.50 x .375 x .50
1/2R-W93-SE
.375
2000
1.38
1.28
3.50
1.90
.69
2.63
0.80
6
.50 x .375 x .50
1/2R-W03-SE
.375
3000
1.44
1.28
3.50
1.90
.72
2.63
0.91
6
.50 x .50 x .50
1/2F-W93-SE
.50
2000
1.42
1.37
3.50
1.98
.71
2.75
0.87
-
.50 x .50 x .50
1/2F-W03-SE
.50
3000
1.46
1.37
3.50
1.98
.73
2.75
0.95
-
.75 x .75 x .75
3/4F-W93-SE
.75
2000
2.09
1.69
4.87
2.41
1.04
3.50
2.19
-
.75 x .75 x.75
3/4F-W03-SE
.75
3000
2.19
1.69
4.87
2.41
1.04
3.50
2.34
-
1 x .75 x 1
1R-W93-SE
.75
2000
2.19
1.94
4.87
2.41
1.09
3.88
2.25
30
1 x .75 x 1
1R-W03-SE
.75
3000
2.19
1.94
4.87
2.41
1.09
3.88
2.65
30
