Valve

Series US

Carbon Steel

Weld x Weld Connection



ANSI Class 150, 300

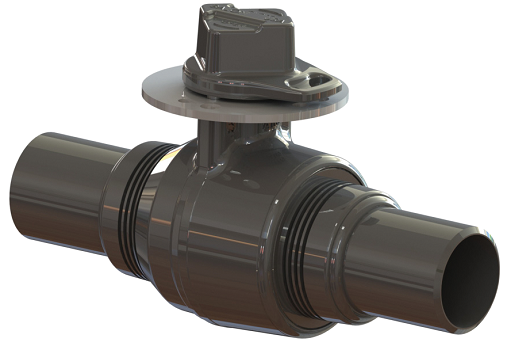

Floating Ball Valve

  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • ANSI Class 300 (740 PSI WP)
  • 3/4" Through 8"
  • Welded Body Construction

Valve Features
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Meets/Exceeds-ASME B16.34
  • Rugged Double Stops
  • Heat Dissipating Fins for Protection of Seats and Seals During Welding
  • Each Valve Marked With A Unique Identification Number
  • True Full Port for Hot Tap Service
  • 316 Stainless Steel Stem Standard
  • Multi-Seal Seats (See page B-5)

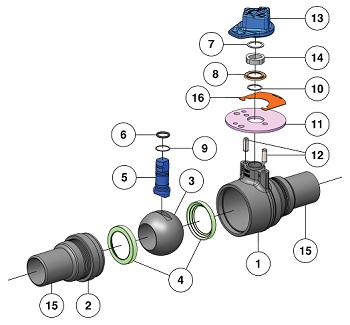

Material Description

* Note: Valve is fully welded and is not field repairable.
ITEM PART
NAME		 MATERIAL
(STANDARD)
1 Body ASTM A105, Normalized
2 Adapter ASTM A105, Normalized
3 Ball Carbon Steel - Nickel Chrome Plated
4 Seats Nylon 11
5 Stem 316 Stainless Steel
6 Stem O-Ring Buna-N
7 Snap Ring Carbon Steel
8 Weather Seal Nylon 11
9 Stem SEal TFE
10 Snap Ring Carbon Steel
11 Lock Plate Carbon Steel
12 Stop Pin Stainless Steel
13 Drive Nut* Ductile Iron/Carbon Steel
14 Stem Connection Carbon Steel
15 Pipe ASTM A106 Grade C**
16 Tag Stainless Steel
* 2" Square Nut standard on most models. 3/4F-1R models come standard with a Curb Nut. 2" Square Nut available with 3/4F and 1R models upon request.
** Also meets ASTM A106 Grade B

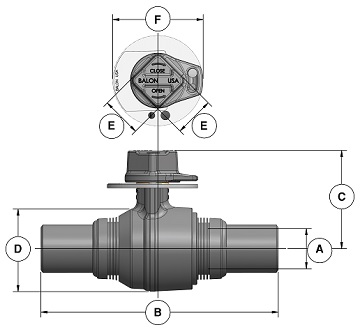

Dimensional Data

SIZE CATALOG NUMBER PORT / A WP B C D E F LBS. Cv
.75x.75x.75 3/4F-US13-BW* 0.75 285 9.0 3.1 1.82 0.47 4.50 3.10 -
.75x.75x.75 3/4F-US33-BW* 0.75 740 9.0 3.1 1.82 0.47 4.50 3.10 -
1x.75x1 1R-US13-BW* 0.75 285 9.0 3.1 1.82 0.47 4.50 3.65 30
1x.75x1 1R-US33-BW* 0.75 740 9.0 3.1 1.82 0.47 4.50 3.65 30
2x1.5x2 2R-US13-BW 1.50 285 11.8 4.5 3.48 2.00 4.50 14.00 148
2x1.5x2 2R-US33-BW 1.50 740 11.8 4.5 3.48 2.00 4.50 14.00 148
2x2x2 2F-US13-BW 2.00 285 11.8 4.9 4.28 2.00 4.50 18.00 -
2x2x2 2F-US33-BW 2.00 740 11.8 4.9 4.28 2.00 4.50 18.00 -
3x3x3 3F-US13-BW 3.00 285 11.8 5.9 6.05 2.00 4.50 38.00 -
3x3x3 3F-US33-BW 3.00 740 11.8 5.9 6.05 2.00 4.50 38.00 -
4x3x4 4R-US13-BW 3.00 285 12.8 5.9 6.05 2.00 4.50 41.00 662
4x3x4 4R-US33-BW 3.00 740 12.8 5.9 6.05 2.00 4.50 41.00 662
4x4x4 4F-US13-BW 4.00 285 12.8 6.6 7.50 2.00 4.50 58.00 -
4x4x4 4F-US33-BW 4.00 740 12.8 6.6 7.50 2.00 4.50 58.00 -
6x4x6 6R-US13-BW 4.00 285 15.5 6.6 7.50 2.00 4.50 63.00 800
6x4x6 6R-US33-BW 4.00 740 15.5 6.6 7.50 2.00 4.50 63.00 800
6x6x6 6F-US13-BW** 6.00 285 18.0 12.4 10.47 2.00 5.25 174.00 -
6x6x6 6F-US33-BW** 6.00 740 18.0 12.4 10.47 2.00 5.25 174.00 -
8x6x8 8R-US13-BW** 6.00 285 20.5 12.4 10.47 2.00 5.25 184.00 2200
8x6x8 8R-US33-BW** 6.00 740 20.5 12.4 10.47 2.00 5.25 184.00 2200
* Also available with 2" Square Nut, standard with Curb Nut.
** Also available with Gear Operator.
