Valve

Series US

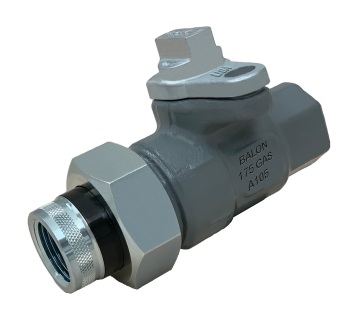

Carbon Steel Meter Valve

Welded Body Construction

Meets API 641 Emissions Standard

Floating Ball Valve

  • 100% Made in USA
  • 175 PSI WP
  • 3/4" and 1"
  • Welded Body Construction

Valve Features
  • Certified Low Emission Per API 641
  • Fire Safe Design
  • Individually Tested and Stamped to ASME B16.33
  • Full Port to Accommodate Industry Stop Changers
  • Designed for Decades of Maintenance Free Service
  • Does Not Require Grease or Periodic Adjustments
  • Forged Steel Body
  • Fully Welded Construction
  • Redundant Seals Throughout
  • Tamper Resistant Locking Wing
  • Multi-Seal Seats (See page B-5)

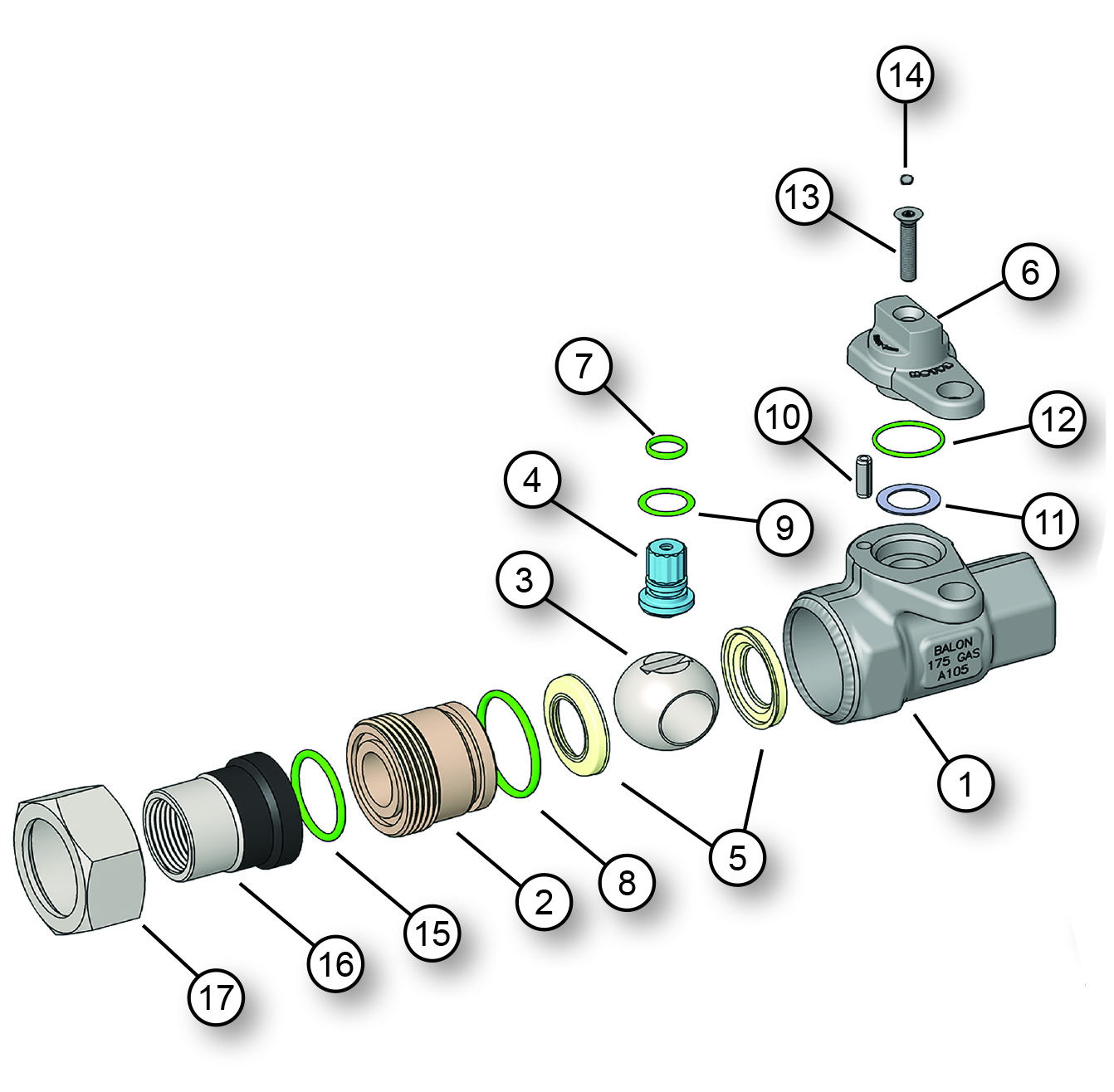

Material Description
ITEM PART
NAME		 MATERIAL
(STANDARD)
1 Body ASTM A105, Normalized
2 Adapter ASTM A108 1018
3 Ball Carbon Steel Nickel Chrome Plated
4 Stem 316 Stainless Steel
5 Seat Polyketone
6 Locking Wing Zinc Alloy
7 O-Ring Buna-N
8 O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stop Pin 316 Stainless Steel
11 Stem Washer Acetal
12 O-Ring Buna-N
13 Screw Stainless Steel
14 Tamper Resistant Device Stainless Steel
15 O-Ring Buna-N
16 Insulator ASTM A108 1018/Polyketone
17 Union Nut Carbon Steel

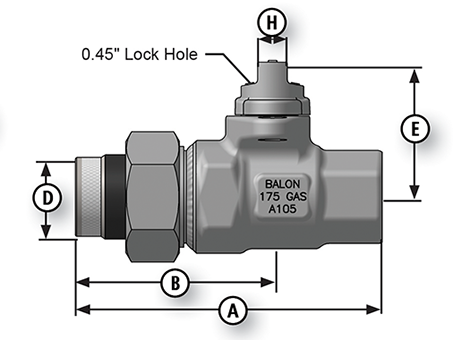

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B D E H LBS.
STANDARD TRIM
BALL & STEM*
.75x.75x.75 3/4F-US175-UF 0.75 175 4.89 3.14 1.27 2.10 0.48 2.5
1x1x1 1F-US175-UF 1.00 175 5.61 3.67 1.48 2.40 0.48 3.5
*Also available with 1/8" NPT test port.
