Floating Ball Valve

  • Maintenance Free
  • Bolted Body Construction
  • 1/2" Through 1"
  • Forged Body and Adapter

Valve Features
  • Meets API 641 Emissions Standard
  • NACE Standard
  • Low-Torque Operation
  • Fire Safe Design
  • Multi-Seal Seats
  • Lever Operated Ball Valve

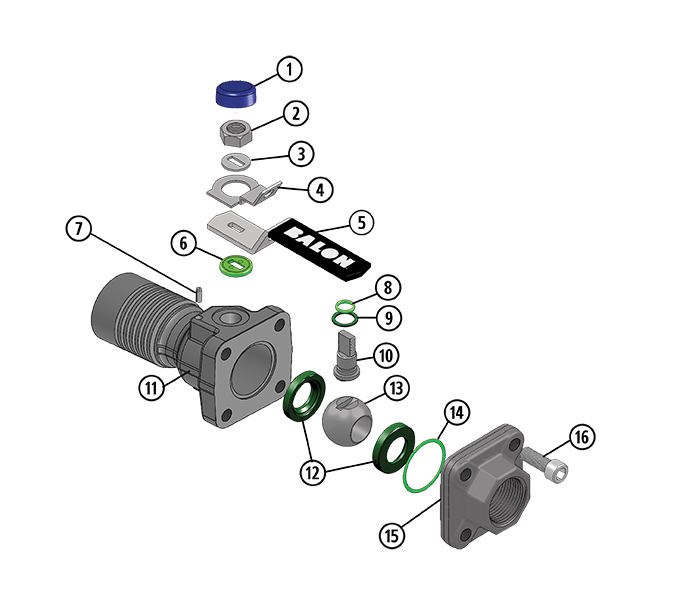

Material Description
ITEM PART
NAME		 MATERIAL
(NACE)
1 Weather Guard Polyethylene
2 Stem Nut Carbon Steel
3 Spacer Carbon Steel
4 Lock Plate Carbon Steel
5 Handle Carbon Steel
6 Stem Washer Acetal
7 Stop Pin Carbon Steel
8 Stem O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body ASTM A105
12 Seat Nylon (TFE Optional**)
13 Ball 316 Stainless Steel
14 Body Seal Fluorocarbon
15 End Adapter ASTM A105
16 Body Bolts ASTM A193 B7M
* Handle and lock device are standard.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page B-37 for more information.

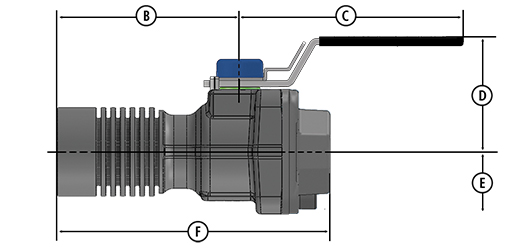

Dimensional Data
The Balon Valve: Totally Advanced
The Balon Valve: Totally Advanced
SIZE CATALOG NUMBER PORT WP A B C D E F LBS. Cv
NACE TRIM
316 SS
BALL & STEM 		LOW TEMP
316 SS
BALL & STEM
.50x.50x.50 1/2F-F03N-SWSE - .50 3000 1.92 3.38 3.50 1.96 .96 5.00 2.00 -
.75x.75x.75 3/4F-F03N-SWSE 3/4F-F03N-SWSE .75 3000 2.62 4.16 4.87 2.56 1.31 5.97 4.47 -
1x.75x1 1R-F03N-SWSE 1R-F03N-SWSE .75 3000 2.62 4.16 4.87 2.56 1.31 5.97 4.47 30
