Valve

Series S

Ductile Iron

Male Threaded x Grooved End Connection

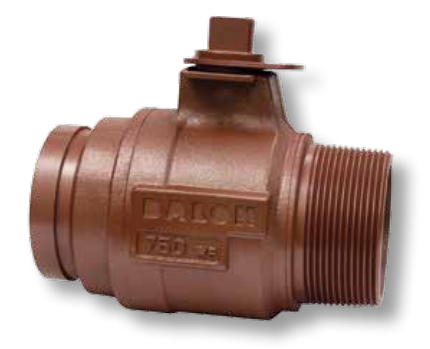

Floating Ball Valve

  • Lever Operated Ball Valve
  • 750 PSI WP
  • 2" Through 4"
  • Threaded Body Construction

Valve Features
  • Meets API 641 Emissions Standard
  • High Grade Annealed Ductile Iron for Better Corrosion Resistance and Greater Yield Strength
  • Multi-Seal Seats
  • NACE Option With 316 Stainless Steel Ball and Stem Available
  • Rugged Locking Device Standard
  • Fire Safe Design
  • Maintenance Free

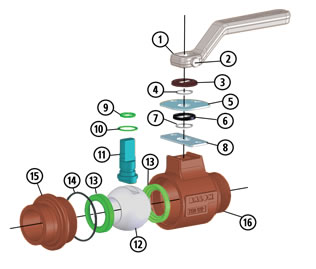

Material Description
ITEM PART
NAME		 MATERIAL
(STANDARD)		 MATERIAL
(NACE)
1 Handle* Carbon Steel/Ductile Iron Carbon Steel/Ductile Iron
2 Handle Bolt Standard Hex Bolt Standard Hex Bolt
3 Weather Guard Polyethylene Polyethylene
4 Lock Plate Retainer Carbon Spring Steel Carbon Spring Steel
5 Lock Plate Carbon Steel Carbon Steel
6 Dust Cover Polyethylene Polyethylene
7 Stop Plate Retainer Carbon Spring Steel Carbon Spring Steel
8 Stop Plate Carbon Steel Carbon Steel
9 Stem O-Ring Buna-N Fluorocarbon
10 Stem Seal TFE TFE
11 Stem Carbon Steel 316 Stainless Steel
12 Ball Carbon Steel Nickel Chrome Plated 316 Stainless Steel
13 Ball Seat Nylon (TFE Optional) Nylon (TFE Optional)
14 Body O-Ring Buna-N Fluorocarbon
15 End Adapter ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
16 Body ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page B-37 for more information.

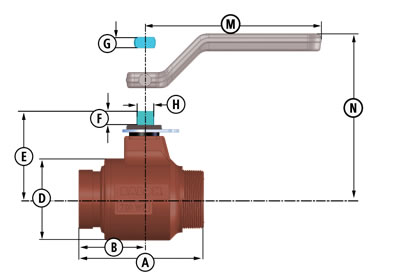

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B D E F G H M N LBS. HANDLE Cv
STANDARD TRIM
CARBON
STEEL
BALL & STEM 		NACE TRIM
316 SS
BALL & STEM
2x1.5x2 2R-S32-MG 2R-S32N-MG 1.5 750 5.12 2.68 3.37 3.62 .62 .434 .873 7.25 5.25 8 P-4128-CS 140
3x2x3 3R-S32-MG 3R-S32N-MG 2 750 7.25 3.50 4.50 4.37 .75 .497 .998 10.25 6.20 17.8 P-4129-CS 200
4x3x4 4R-S32-MG 4R-S32N-MG 3 750 8.87 4.50 6 5.75 .87 .747 1.373 20 7.75 36 P-4127-DI 550
  * Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
