Valve

Series F "9D"

Nickel Aluminum Bronze

Flanged End Connection





Floating Ball Valve

  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • 6" Through 8" Full Port
  • ASTM B148 GR 955 "9D"
  • Bolted Body Construction
  • NACE Standard

Related Valves

Carbon Steel
Valve Features
  • Certified Low Emission Per API 641
  • Fire Safe Design
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Minimizes Risk of Galling Associated with Stainless Steel
  • Exceptional Yield Strength
  • Exclusive Balon Gearbox (See page G-2)
  • Multi-Seal Seats (See page B-5)

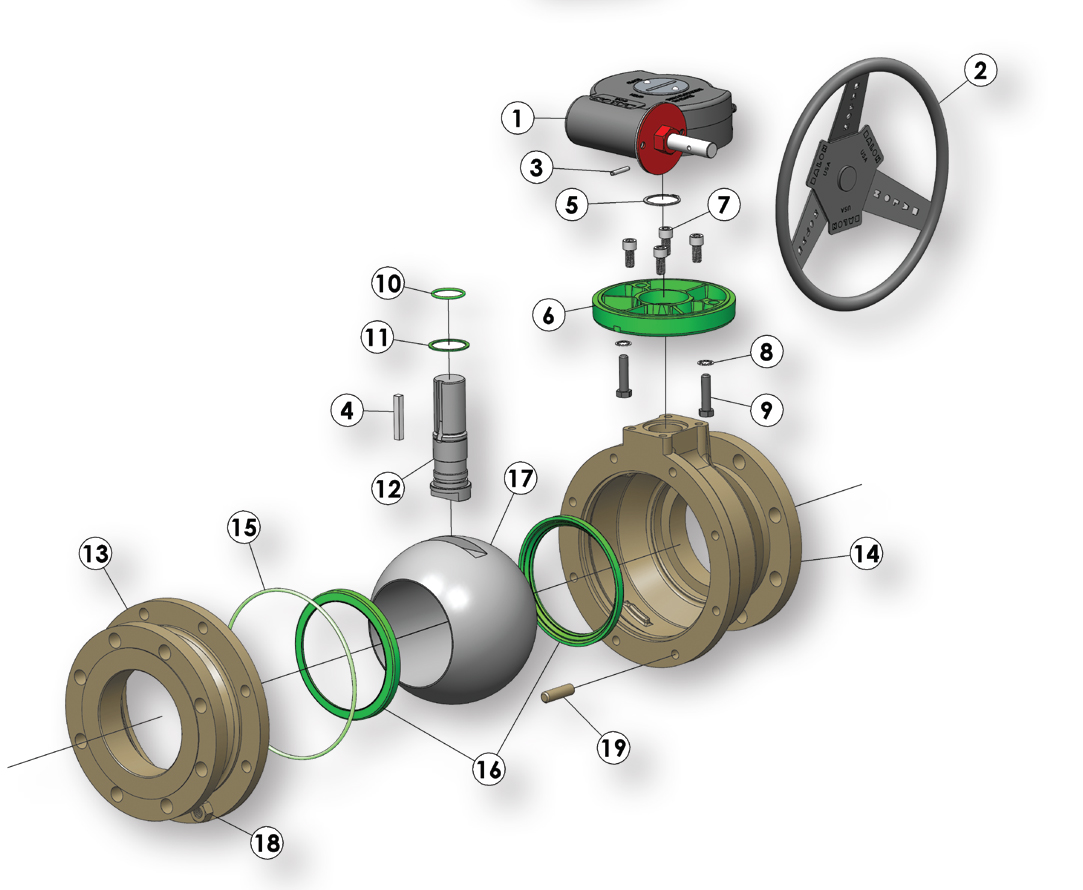

Material Description
ITEM PART
NAME		 MATERIAL (NACE)
1 Gear Operator Ductile Iron
2 Handle Wheel Carbon Steel
3 Drive Pin Carbon Spring Steel
4 Stem Key Steel Key Stock
5 Stem Retainer Ring Carbon Spring Steel
6 Mounting Plate Ductile Iron
7 Mounting Plate Screws Alloy Steel
8 Lock Washers Carbon Steel
9 Mounting Screws Alloy Steel
10 Stem O-Ring Fluorocarbon
11 Stem Seal TFE
12 Stem 316 Stainless Steel
13 End Adapter ASTM B148-9D (955)
14 Body ASTM B148-9D (955)
15 Body O-Ring Fluorocarbon
16 Ball Seats Nylon 11 (TFE Optional*)
17 Ball 316 Stainless Steel
18 Nuts ASTM A194 7M
19 Body Bolts ASTM A193 L7M
* Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page TD-4 for more information.

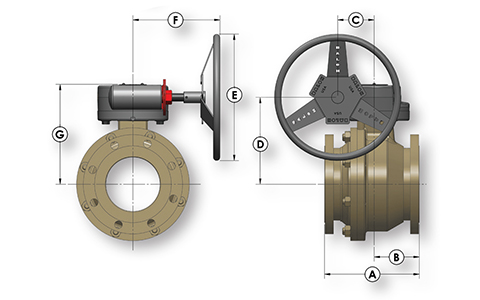

Dimensional Data

SIZE CATALOG NUMBER PORT A B C D E F G LBS. Cv
NACE TRIM
316 SS
BALL & STEM
6x6x6 6F-F14N-RF 6 10.5 4.50 4.00 9.75 14 9.0 11.19 230 -
8x8x8 8F-F14N-RF 8 18.0 8.00 5.25 12.0 20 11.5 13.75 520 -
