Valve

Series T

Carbon Steel

Flanged End Connection



ANSI Class 300

Trunnion Ball Valve


  • Gear Operated Trunnion Ball Valve
  • ANSI Class 300 (740 PSI WP)
  • 8" through 12"
  • Bolted Body Construction

Valve Features
  • Exclusive Balon Gearbox
    • Suitable for Buried Service
    • Stainless Steel Input Shaft Standard
    • Stainless Steel Directional Indicator
    • Integral Locking Device Standard
    • Manufactured in our Oklahoma City Plant
  • Multi-Seal Seats
  • Fire Safe Design
  • Temperature rating of -20° to 250° F

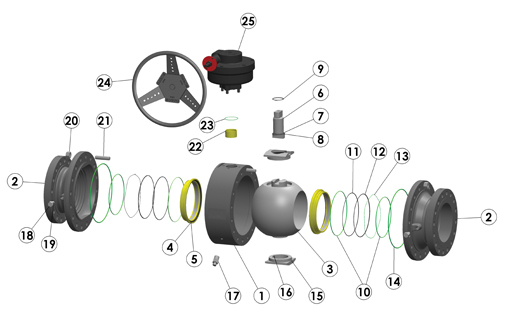

Material Description
ITEM PART NAME STANDARD TRIM CARBON STEEL NACE STAINLESS STEEL NACE
1 Body* ASTM A105, Normalized ASTM A105, Normalized ASTM A105, Normalized
2 Adapter ASTM A105, Normalized ASTM A105, Normalized ASTM A105, Normalized
3 Ball Carbon Steel Nickel Chrome Plated Carbon Steel Nickel Chrome Plated 316 Stainless Steel
4 Seat Carrier Carbon Steel Nickel Chrome Plated Carbon Steel Nickel Chrome Plated 316 Stainless Steel
5 Seat Insert Nylon/Acetal Nylon/Acetal Nylon/Acetal
6 Stem Carbon Steel Carbon Steel 316 Stainless Steel
7 Stem O-Ring Buna-N Fluorocarbon Fluorocarbon
8 Stem Thrust Washer TFE TFE TFE
9 Snap Ring Carbon Spring Steel Carbon Spring Steel Carbon Spring Steel
10 Seat O-Ring Buna-N Fluorocarbon Fluorocarbon
11 Fireseal Graphite Graphite Graphite
12 Fireseal Support Ring Stainless Steel Stainless Steel Stainless Steel
13 Spring Inconel X-750 Inconel X-750 Inconel X-750
14 Body O-Ring Buna-N Fluorocarbon Fluorocarbon
15 Bearing Block Carbon Steel Carbon Steel Stainless Steel
16 Trunnion Bearing 316 SS/TFE 316 SS/TFE 316 SS/TFE
17 Bleed Fitting 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel
18 Sealant Injection Fitting Alloy Steel Alloy Steel Alloy Steel
19 Internal Check Fitting 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel
20 Nuts ASTM A194 2H ASTM A194 2HM ASTM A194 2HM
21 Studs ASTM A193 B7 ASTM A193 B7M ASTM A193 B7M
22 Stem Bearing Glass/TFE Glass/TFE Glass/TFE
23 Gear Operator O-Ring Buna-N Fluorocarbon Fluorocarbon
24 Handwheel Carbon Steel Carbon Steel Carbon Steel
25 Gear Operator Ductile Iron Ductile Iron Ductile Iron
* 8" body is ASTM A216 WCB

Dimensional Data
The Balon Valve: Totally Advanced
The Balon Valve: Totally Advanced
SIZE CATALOG NUMBER PORT A B C D E F G LBS.
STANDARD TRIM
CARBON STEEL
BALL & STEM
NACE TRIM
CARBON STEEL
BALL & STEM
LOW TEMP
316 SS
BALL & STEM
8x8x8 8F-T33-RF 8F-T33CN-RF* 8F-T33SN-RF 8 19.75 9.37 5.25 11.75 20 11.56 13.67 684
10x10x10 10F-T33-RF 10F-T33CN-RF* 10F-T33SN-RF* 10 22.38 11.2 3.04 17.83 20 13.25 19.57 1200
12x12x12 12F-T33-RF 12F-T33CN-RF* 12F-T33SN-RF* 12 25.50 12.75 3.04 18.85 20 11.85 20.60 1670
  * NACE Valves are also available in low temp. Call factory for details.
