Valve

Series C

Carbon Steel

Threaded End Connection

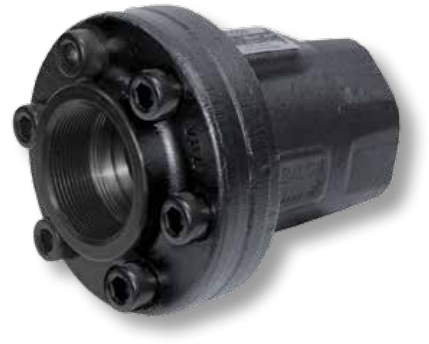

Swing Check Valve

  • Swing Check Valve
  • 3,000 PSI WP
  • 2"
  • Bolted Body Construction

Related Valves

Ductile Iron

Aluminum Bronze
Valve Features
  • Bolted Body Protects Against End Adapter Blowout
  • Replaceable Seat Disc Cartridge
  • Seal Located in Seat, Thus Protected From Flow
  • NACE Standard
  • 316 Stainless Steel Disc Standard

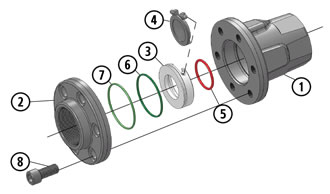

Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body ASTM A216 Grade WCB/A105 ASTM A216 Grade WCB/A105
2 Adapter ASTM A216 Grade WCB/A105 ASTM A216 Grade WCB/A105
3 Seat Replaceable Carbon Steel Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Buna-N Body Seal: Fluorocarbon
8 Bolts ASTM A193 B7M ASTM A193 B7M

Dimensional Data

SIZE CATALOG NUMBER PORT D L LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2R-C03-SE 2R-C03S-SE 1.5 4.87 5.37 11.7
