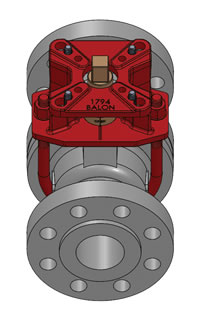

Actuation Mounting Package
Gear Operator
View\Save Cut-Sheet


Actuation Mounting Package Instructions


Watch our Actuation Mounting Package Video
BALON VALVE
BORE SIZE
BOLT CIRCLES MALE PARALLEL
SQUARE DRIVER
BOLTS IMPERIAL BOLTS METRIC BALON’S PART #
1" Full Port F03 - 1.417ʺ D.B.C.
F04 - 1.653ʺ D.B.C.
F05 - 1.969ʺ D.B.C.
F07 - 2.759ʺ D.B.C.
9mm #10-24 X 5/8 M5 X 16mm 9-1F-ISO
1/4-20 X 5/8 M6 X 16mm
11mm #10-24 X 5/8 M5 X 16mm 11-1F-ISO
1/4-20 X 5/8 M6 X 16mm
14mm 1/4-20 X 5/8 M6 X 16mm 14-1F-ISO
5/16-18 X 7/8 M8 X 22mm
17mm 1/4-20 X 5/8 M6 X 16mm 17-1F-ISO
5/16-18 X 7/8 M8 X 22mm
2" Regular Port F07 - 2.759ʺ D.B.C.
F10 - 4.015ʺ D.B.C.
F12 - 4.921ʺ D.B.C.
17mm 5/16-18 X 7/8 M8 X 22mm 17-2R-ISO
3/8-16 X 1 M10 X 25mm
19mm 5/16-18 X 7/8 M8 X 22mm 19-2R-ISO
3/8-16 X 1 M10 X 25mm
22mm 5/16-18 X 7/8 M8 X 22mm 22-2R-ISO
3/8-16 X 1 M10 X 25mm
27mm 3/8-16 X 1 M10 X 25mm 27-2R-ISO
1/2-13 X 1 M12 X 30mm
2" Full Port
and
3" Regular Port
F07 - 2.759ʺ D.B.C.
F10 - 4.015ʺ D.B.C.
F12 - 4.921ʺ D.B.C.
17mm 5/16-18 X 7/8 M8 X 22mm 17-2F/3R-ISO
3/8-16 X 1 M10 X 25mm
19mm 5/16-18 X 7/8 M8 X 22mm 19-2F/3R-ISO
3/8-16 X 1 M10 X 25mm
22mm 5/16-18 X 7/8 M8 X 22mm 22-2F/3R-ISO
3/8-16 X 1 M10 X 25mm
27mm 3/8-16 X 1 M10 X 25mm 27-2F/3R-ISO
1/2-13 X 1 M12 X 30mm
3" Full Port
and
4" Regular Port
F07 - 2.759ʺ D.B.C.
F10 - 4.015ʺ D.B.C.
F12 - 4.921ʺ D.B.C.
F14 - 5.512ʺ D.B.C.
19mm 5/16-18 X 7/8 M8 X 22mm 19-3F/4R-ISO
3/8-16 X 1 M10 X 25mm
22mm 5/16-18 X 7/8 M8 X 22mm 22-3F/4R-ISO
3/8-16 X 1 M10 X 25mm
27mm 3/8-16 X 1 M10 X 25mm 27-3F/4R-ISO
1/2-13 X 1 M12 X 30mm
36mm 1/2-13 X 1 M12 X 30mm 36-3F/4R-ISO
5/8-11 X 1 1/4 M16 X 35mm
4" Full Port
and
6" Regular Port
F07 - 2.759ʺ D.B.C.
F10 - 4.015ʺ D.B.C.
F12 - 4.921ʺ D.B.C.
F14 - 5.512ʺ D.B.C.
19mm 5/16-18 X 7/8 M8 X 22mm 19-4F/6R-ISO
3/8-16 X 1 M10 X 25mm
22mm 5/16-18 X 7/8 M8 X 22mm 22-4F/6R-ISO
3/8-16 X 1 M10 X 25mm
27mm 3/8-16 X 1 M10 X 25mm 27-4F/6R-ISO
1/2-13 X 1 M12 X 30mm
36mm 1/2-13 X 1 M12 X 30mm 36-4F/6R-ISO
5/8-11 X 1 1/4 M16 X 35mm

Conforms to ISO 5211
*Other ISO and Non-ISO Drivers available upon request
